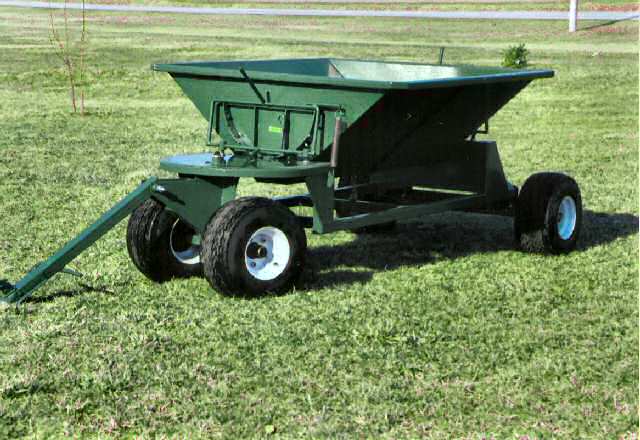

Side Dump Trailer
The side dump trailer offers an economical and convenient way for getting in between tight spaces. With 3 models available, the side dump trailer is perfect for your cemetery needs.
| SPECIFICATIONS | |||
| MODEL NUMBER | 3/4 SD | 1 SD | 1 1/2 SD |
| Capacity | 3/4 Yard | 1 Yard | 1-1/2 Yard |
| Trailer weight | 580 lbs. | 605 lbs. | 795 lbs. |
| Body Type | Dump | Dump | Dump |
| TRAILER DIMENSIONS | |||
| – Body Width | 52″ | 52″ | 56″ |
| – Body Length | 64″ | 64″ | 64″ |
| – Body Depth | 18″ | 24″ | 30″ |
| – Body Thickness | 12 ga. | 12 ga. | 12 ga. |
| – Height Overall | 35″ | 42″ | 48″ |
| – Length Overall | 152″ | 152″ | 152″ |
| Number of Wheels | 4 | ||
| Tires: Pneumatic | 18 x 8.50 x 8 | ||
| Front Tread | 21 1/2 | 21 1/2 | 21 1/2 |
| Rear Tread | 40 | 40 | 57 |
| Frame Girder | 2 x 2 x 1/4 Square Tubing | ||
| Shipping Data | 2 pcs. | 2 pcs. | 2 pcs. |
